AUTOMATIC GRAIN SAMPLER
Automtic Grain Sampler FTAGS 5000/7000
Designed and built by Fluisys Technologies in India
SPECIFICATIONS
Model
Operation
Main Electrical Panel
Hydraulic Powerpack
SS Grain Collector
Main Pillar with Rotating Probe
Operation
Safety
Ladder with Top Platform
FTAGS 5000/7000
All operation of the Automatic Grain Sampler are done thru the Remote Electrical Panel with 10 m control cable connection, located in the Sample collecting Lab
Input, 440 vac connection , 4 core, Motor 3.7 kw with Air blower 220vac, with Vacuum blower 220vac enclosed in a outdoor unit, weatherproof located near the sampler foundation base.
3.7 kWh with Tank with solenoid unloading valve, all enclosed in the Outdoor unit
Frame wall mounted SS grain collector unit with Vacuum Blower , can be located max. 7 m from the Pillar foundation, 12 m from the probe center , in the Lab.

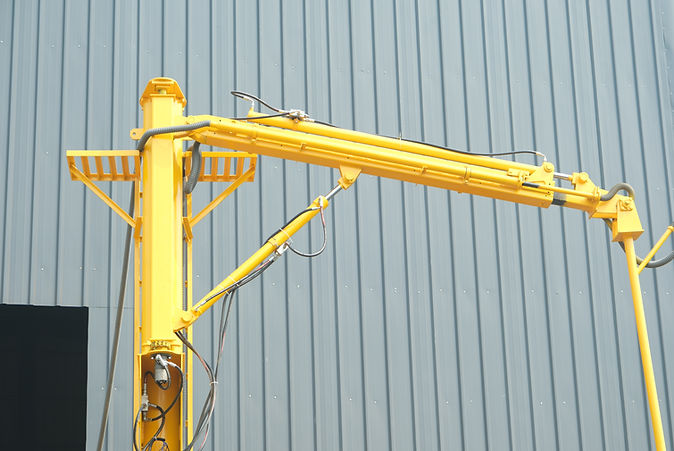

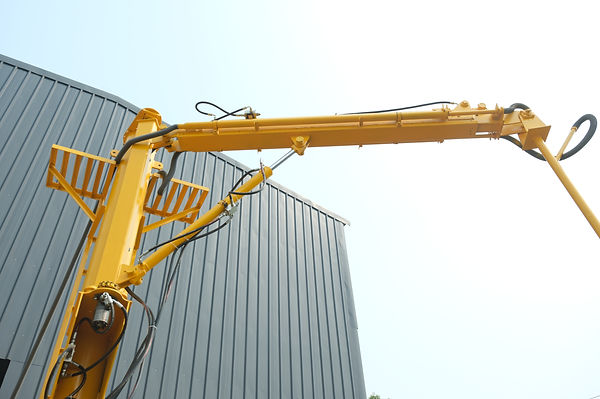

Mounted on a concrete foundation at site, with hydraulically operated Telescopic boom max outreach of probe 5m from the center of the foundation.
Boom up/down | Boom tele in /out | Boom rotation +90 and -90 degree max from the center
All hydraulic cylinder are with any position Holding valves
For working on the Pillar top for maintenance
